Tomcat for Eclipse

Tomcat launcher Eclipse plugin for debud
Home page
Download page
Direct download (ver. 3.2.1) !
Comments for tomcat plugin
Tomcat Tutorial: HelloWorld for Complete Fools
Documentation (translated with google)

Read before, note: replace my tomcat home "/home/alexey/java/exo-working/exo-tomcat" with your's.

1. Install
Unpack it to eclipse/plugins dir.
Start or restart Eclipse.
Be sure that you see the new tomcat panel.

2. Configure
Configure plugin under eclipse
Window -> Preferences... -> Tomcat:
2.1
Set version of your tomcat (e.g.: 5.x)
Set tomcat home (e.g.: /home/alexey/java/exo-working/exo-tomcat)
Context declaration mode: Server.xml

2.2 Advanced
Set tomcat base (e.g.: /home/alexey/java/exo-working/exo-tomcat)
Check projects for "Add java projects to tomcat classspath" (e.g.: Select All)
2.3 JVMSettings
In section "Append to JVM Parameters" add both:
"-Dorg.apache.commons.logging.Log=org.apache.commons.logging.impl.SimpleLog"
"-Djava.security.auth.login.config=/home/alexey/java/exo-working/exo-tomcat/conf/jaas.conf"


2.4 Source Path
Manually select or check "Automatically compute source path"
Click "Apply" and "OK".

3. Use
Set launch configuration.
"Run" -> "Open Debug Dialog..." -> Double click on "Java Application" for creating new configuration.
Tabs:
3.1 Main
Type in the field "Name" launch configuration name (e.g.: Tomcat5).
Choose "Project" (e.g. Portal)
Set in the "Main class" value "org.apache.catalina.startup.Bootstrap"
3.2 Arguments
Program arguments:
-config "/home/alexey/java/exo-working/exo-tomcat/conf/server.xml" start
VM arguments:
-Dcatalina.home="/home/alexey/java/exo-working/exo-tomcat"
-Djava.endorsed.dirs="/home/alexey/java/exo-working/exo-tomcat/common/endorsed"
-Dcatalina.base="/home/alexey/java/exo-working/exo-tomcat"
-Djava.io.tmpdir="/home/alexey/java/exo-working/exo-tomcat/temp"
-Dorg.apache.commons.logging.Log=org.apache.commons.logging.impl.SimpleLog
-Djava.security.auth.login.config=/home/alexey/java/exo-working/exo-tomcat/conf/jaas.conf


3.3 JRE
Skip

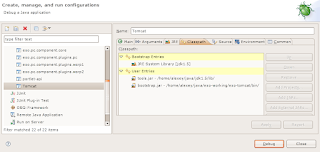

3.4 Classpath
Remove user entries projects jars to avoid some strange exceptions while the tomcat is starting.
Add two jars to the "User Entries"
"tools.jar" from JAVA_HOME/lib
"bootstrap.jar" from TOMCAT_HOME/bin

3.5 Source
Skip

Click "Apply" and "Debug"

1 comment:

amelentyev said...

Another way to debug webapp is run maven with jetty-maven plugin in debug mode. Like in xwiki
pom.xml
You even don't need jetty for it. :)
